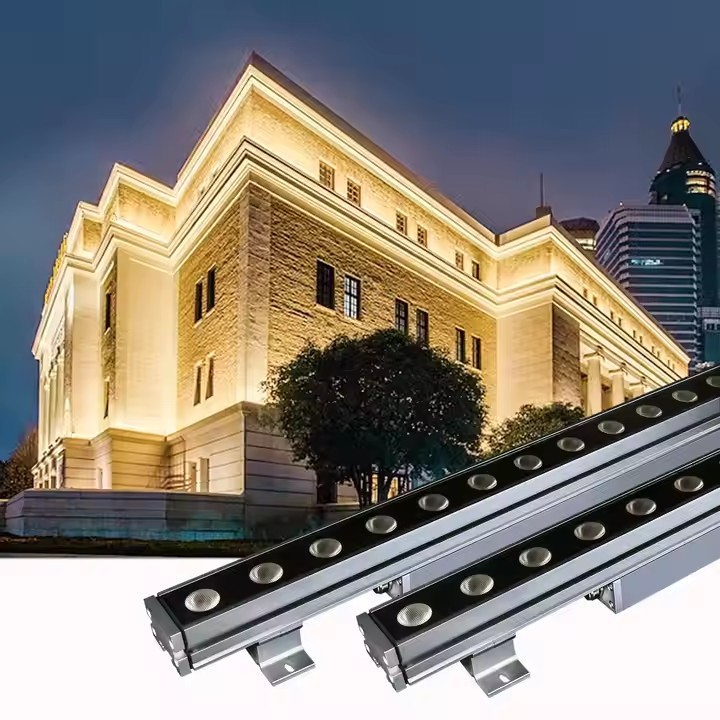

LINEAR WALL WASHER LIGHTS - SINGAL COLOR 500MM

About LINEAR WALL WASHER LIGHTS - SINGAL COLOR 500MM

Wall Washer Light Specification Sheet

1. Product Type:
LED Linear Wall Washer / Architectural Wall Washer

2. Power Options:
12W / 18W / 24W / 36W / 48W / 72W

3. Input Voltage:
24V DC / 100ï240V AC

4. Beam Angle Options:
5, 10, 15, 25, 30, 45, 60

5. CCT (Color Temperature):

• 2700K (Warm White)

• 3000K

• 4000K (Neutral White)

• 6000K (Cool White)

• RGB / RGBW / Tunable White

6. Control Options:

• ON/OFF

• 0ï10V Dimming

• DMX512

• DALI

• Wireless (Optional)

7. Housing Material:
Aluminum Alloy Body with Tempered Glass Cover

8. IP Rating:
IP65 / IP66 / IP67 (Waterproof & Dustproof)

9. IK Rating:
IK08 / IK10 (Impact Resistant)

10. Mounting:
Surface / Wall Mount with Adjustable Bracket

11. Dimensions (Common Sizes):

• 300mm / 500mm / 600mm / 1000mm / 1200mm
  (Custom sizes available)

12. LED Source:
High Power LEDs / SMD LEDs (Osram / Cree / Bridgelux optional)

13. Luminous Flux:
80ï110 lm/W (depending on color and driver)

14. Lifespan:

50,000 Hours

15. Operating Temperature:
-20C to +50C

16. Certifications:
CE / RoHS / BIS (if applicable)

17. Warranty:
3 to 5 Years (As per manufacturer policy)
