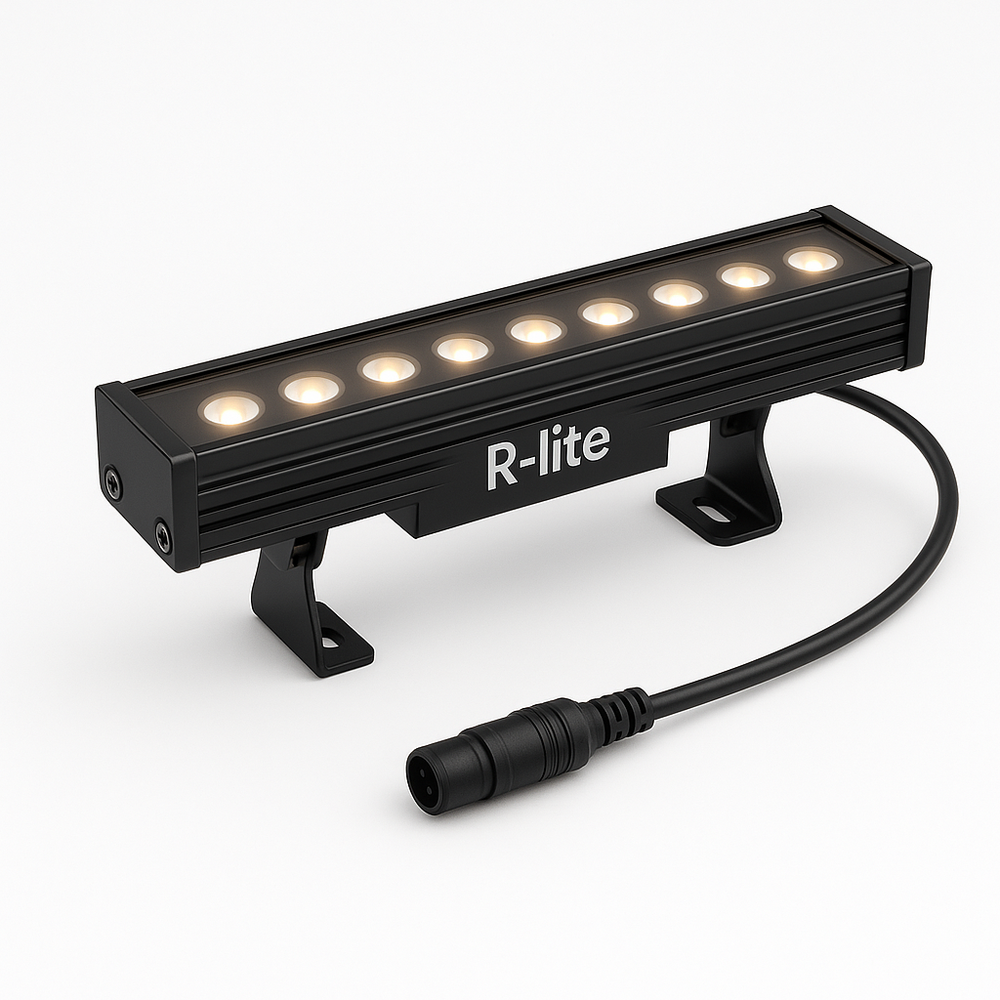

WALL WASHER 300MM 3000K

About WALL WASHER 300MM 3000K

300mm Single-Color LED Wall Washer ï Specification

1. Product Overview:

• Fixture Type: LED Wall Washer (Single-Color)

• Length: 300 mm

• Application: Facade illumination, architectural accent, indoor/outdoor lighting

2. LED & Optical Parameters:

• LED Source: High-performance single-color LEDs

• Available Colors: Warm White (3000K), Neutral White (4000K), Cool White (6000K), or other single colors (Red, Green, Blue, Amber, etc.)

• Color Rendering Index (CRI): ï80 (for white variants)

• Luminous Output: Approx. 1200-1500 lumens

• Beam Angle: Typically 10x45, 15x30, customizable as per project requirements

3. Electrical Specifications:

• Power Consumption: 15 Watts

• Operating Voltage: AC 100-277V or DC 24V (specify as required)

• Driver Type: Integrated constant-current LED driver

• Power Factor: ï0.90

4. Physical Characteristics:

• Housing Material: Aluminum (Die-cast or Extruded)

• Surface Treatment: Powder-coated (standard: Black/Grey/White; custom available)

• Lens: Tempered glass or UV-resistant polycarbonate

• Ingress Protection: IP65/IP66 (Suitable for outdoor conditions)

• Impact Resistance: IK07 or above

5. Installation and Mounting:

• Mounting Type: Adjustable brackets (ï90 tilt angle)

• Wiring: Built-in weatherproof cable (standard length: 0.5-1 meter)

6. Environmental Conditions:

• Operating Temperature Range: -20C to +50C

• Storage Temperature: -30C to +60C

• Humidity: 10%-90% RH (non-condensing)

7. Certifications & Compliance:

• Certifications: CE, RoHS

• LED Standards: LM-79 and LM-80 compliant preferred

• Warranty: Standard 2-3 years, extendable upon request

8. Optional Features:

• Dimming: Available in 0-10V, DMX, or DALI control options

• Custom housing colors or finishes

Versatile Outdoor Illumination

Engineered for both architectural and landscape applications, the WALL WASHER 300MM 3000K seamlessly integrates into building exteriors and public spaces. Its targeted 30 beam angle provides focused lighting, enhancing architectural elements while maintaining energy efficiency. This product meets the requirements of professionals, including dealers, distributors, and installers.


Built to Withstand Elements

With a robust aluminum housing and powder-coat finish, the light fixture resists corrosion and harsh climates. Its IP66 rating ensures dependable operation in varying temperatures from -20C to +50C, making it ideal for outdoor walls and facades across Indias diverse climates.


Efficient and Easy to Install

This surface-mounted wall washer comes with an integrated driver and bracket mount for straightforward installation. It connects easily to a standard AC supply (110-240V), making it suitable for retrofit or new projects, and its lightweight 1.5 kg design simplifies handling during setup.
